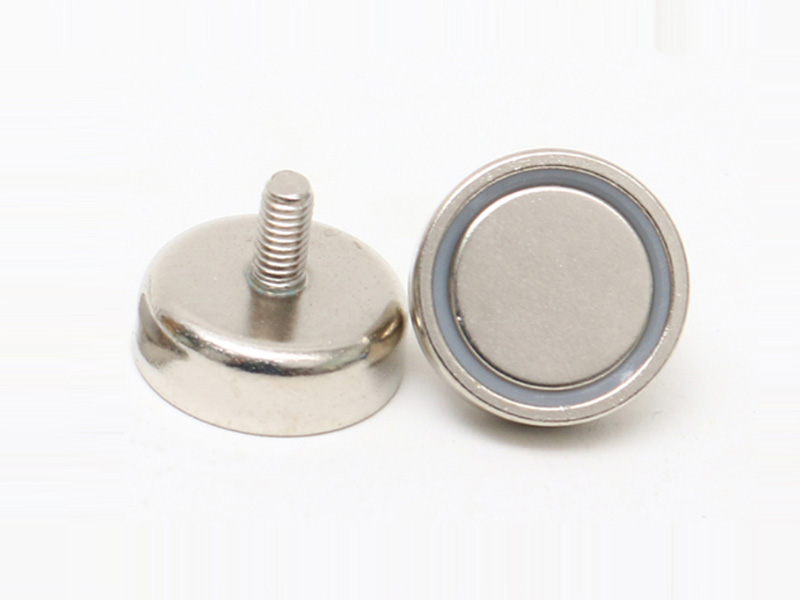

Neodymium Pot magnets are the best for small sizes with maximum pull strength. And the steel case design protect the inner magnets well,and magnets not easy break and scratched. We offer pot magnets with Nickel, Zinc, Chrome, white paint ,Red Paint,black Paint, black rubber coated surface. Present we offer follow types NdFeB Pot magnets

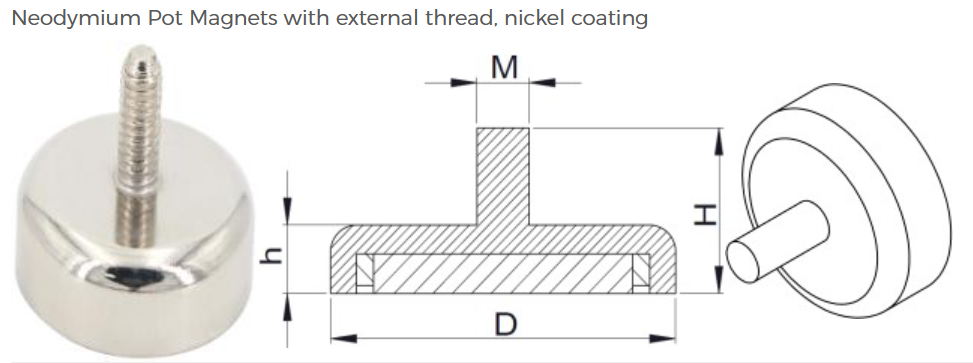

Model	D (mm)	H (mm)	h (mm)	M	Weight (g)	Breakaway (kg)
KTNP-C10	10	12	5	M3	3.5	2.2
KTNP-C12	12	13	5	M3	5	4
KTNP-C16	16	13	5	M4	7.5	8
KTNP-C20	20	15	7	M4	16	12
KTNP-C25	25	17	8	M5	30	25
KTNP-C32	32	18	8	M6	45	43
KTNP-C36	36	18	8	M6	57	45
KTNP-C42	42	20	9	M6	84	72
KTNP-C48	48	24	11.5	M8	130	91
KTNP-C60	60	30	15	M8	254	130
KTNP-C75	75	34	18	M10	550	200
